Trenching up to 102″ deep
Two-lever hydraulic controls
Rigid 4th point mounting eliminates need for frame mount

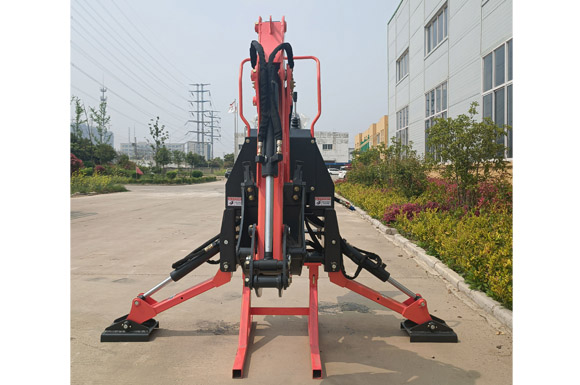

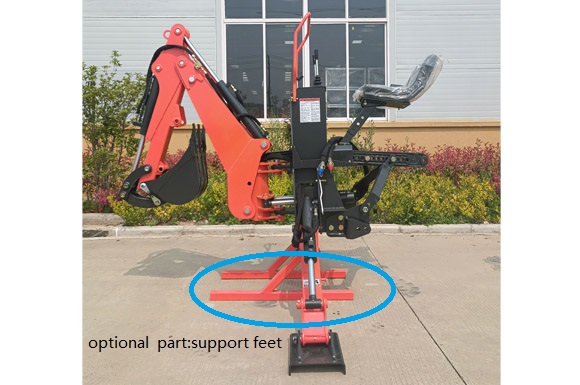

Hydraulic stabilizers

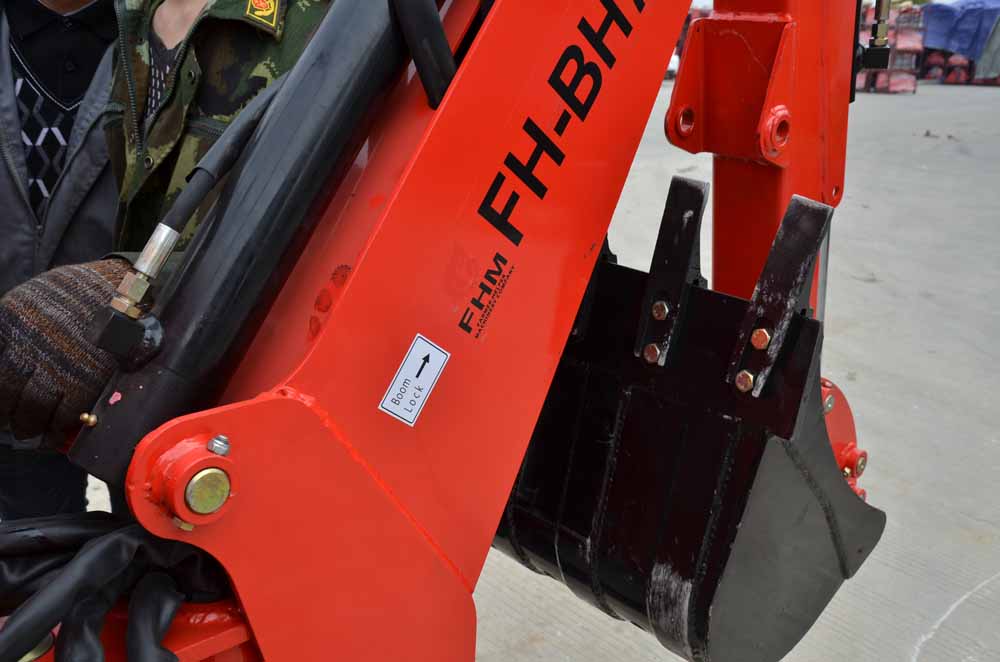

Transport lock
Mechanical thumb
Variety of bucket sizes
Built using Q-235 structural steel
High quality components
The farmer-helper (FH) backhoes are built strong and feature heavy lift and major digging capacity.



Benefits:
Fits all tractor brands with standard Cat-I three point Hitch
Self contained hydraulic systems does not use your tractors hydraulics or a dangerous hang on pump

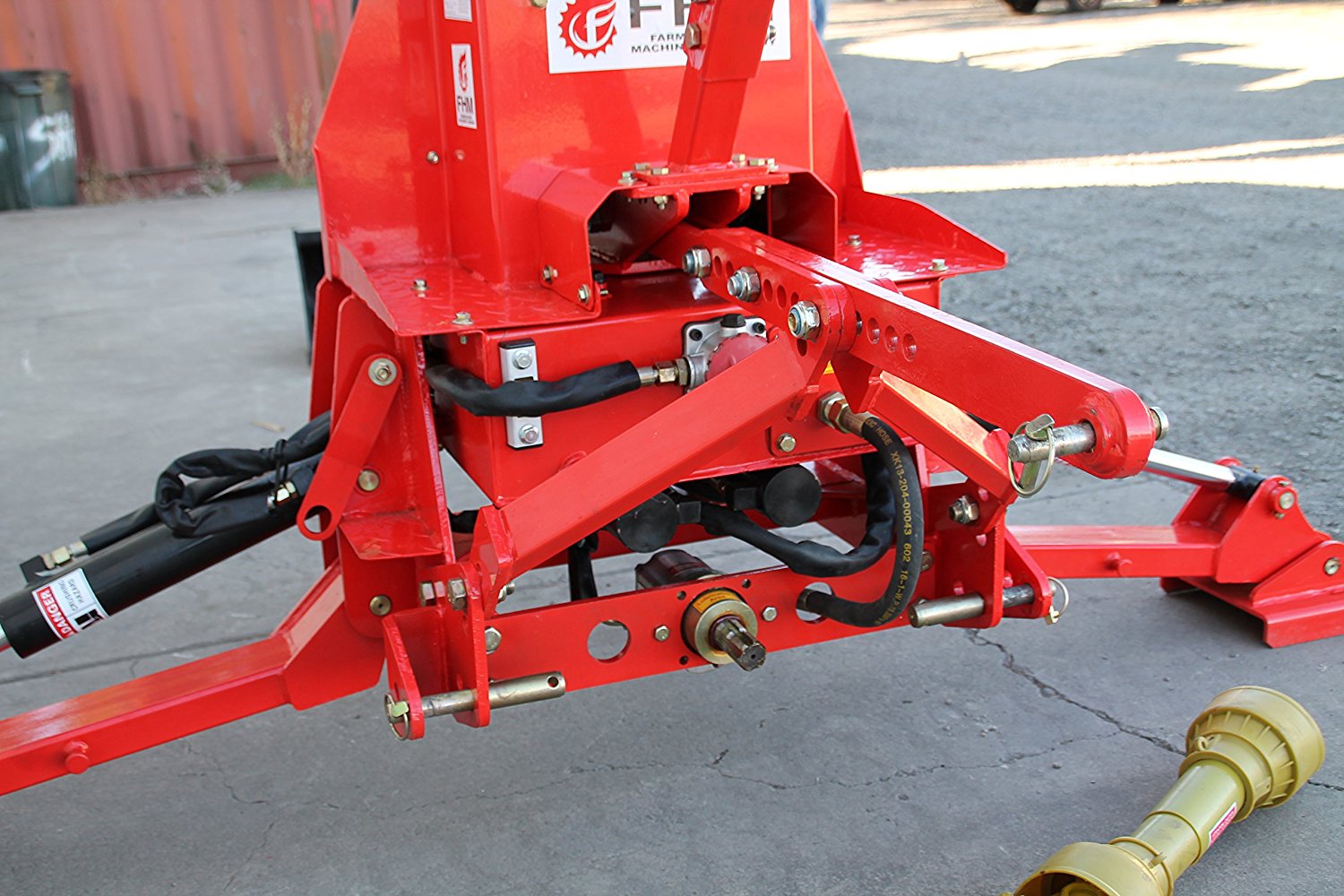

Custom top link systems and double triangle 4th point mount removes the requirement of a sub-frame
Parts and accessories in stock plus a Large selection of optional bucket sizes
Large selection of optional buckets sizes.
The BHM175 Sub-Compact Tractor backhoe was specifically designed for today’s Sub-Compact Tractors. The VL_BHM5 is a fully intergrated design that assures you of trouble free operation.


4-Way ISO Joy Stick Control
Multiple Bucket Sizes
Self-Contained Hydraulic System
Total System Designed for Maximum Efficiency
Backhoe Will Operate with Tractor at an Idle
PTO Driveline Included Free of Charge
Itialian Control Valve
Cat-I 3-Point with 4th Point Stabilizer

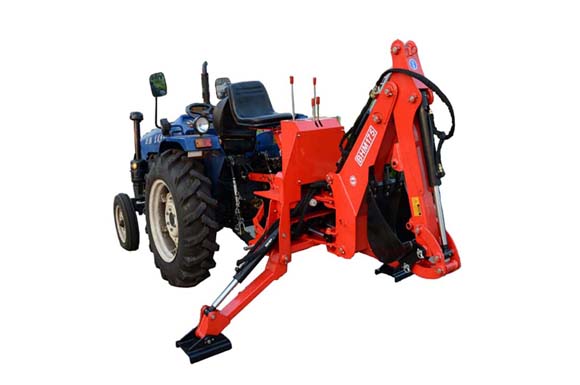

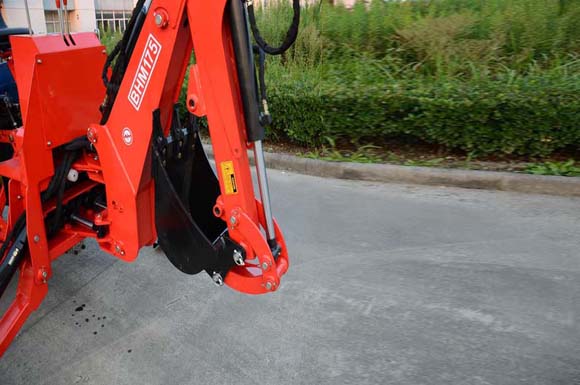

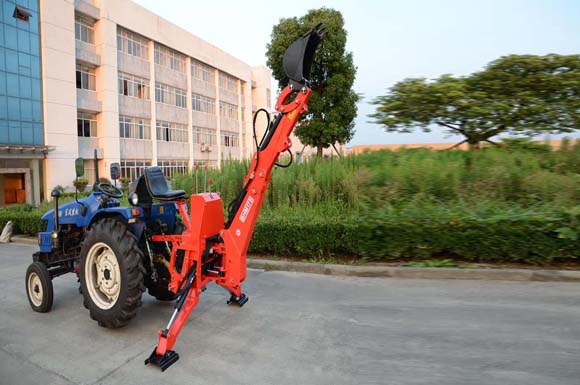

NEW FHM 5′ Dig Sub-Compact Tractor Backhoe BHM175 Cat.1 3Pt. 18HP – 24HP
Use PTO Driveline to Power Hydraulics

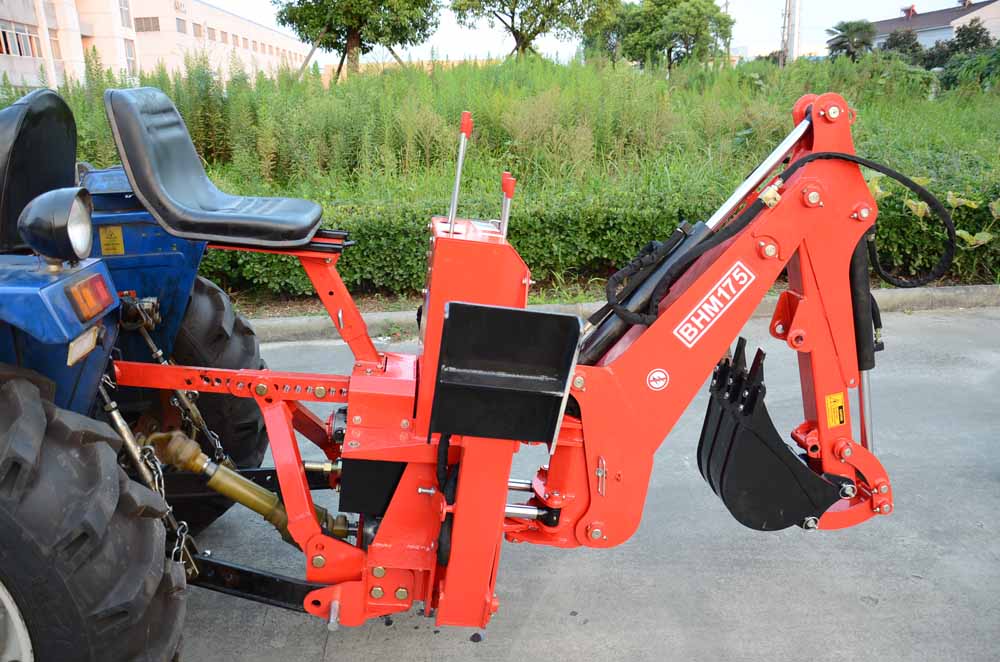

Tank, Pump & In-Line Filter Built into Frame
Cat I – 3PT w/12″ Bucket
(Tractor & Loader not Included)
Cat. I with 3 point hitch mount. Designed for 18HP – 24HP Rated Compact Tractor ONLY! (see larger backhoes for tractor’s over 24HP)
PTO Driveline Powers Hydraulic Pump built into Backhoe Frame with Hydraulic Tank and Filter System, See Pics
Delivered with all major parts pre-installe,d No Hoses or Cylinders to Connect , install 3pt attaching parts & Seat, add Hydraulic Flui,d attach the PTO driveline and ready to go!

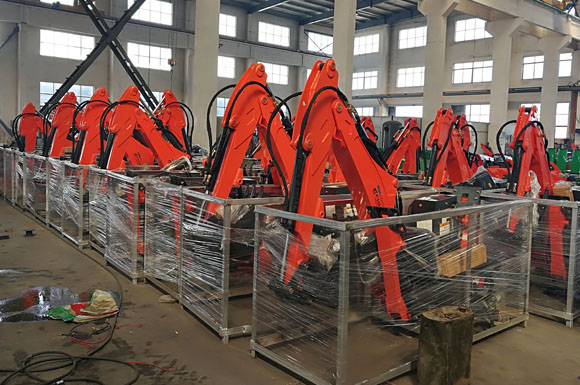

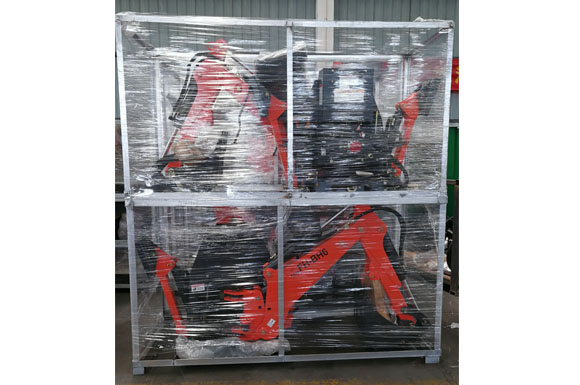

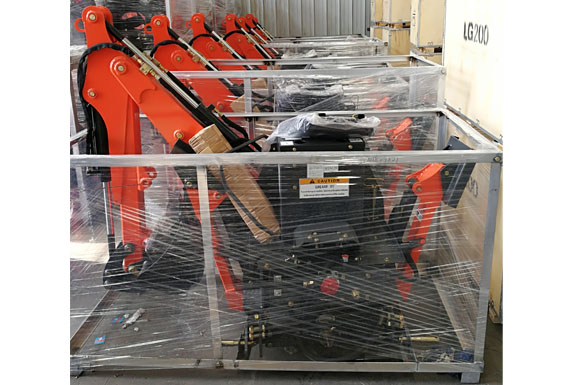

See Pic of How it Ships Pre-Assembled in crate
See video, this self contained design allows backhoe to operate smoothly with tractor engine at an idle.
Adjustable Master Relief Systems
Anti-Sway Design
PTO Driveline Included – Standard 1 3/8″ 6-Spline w/Shear Bolt

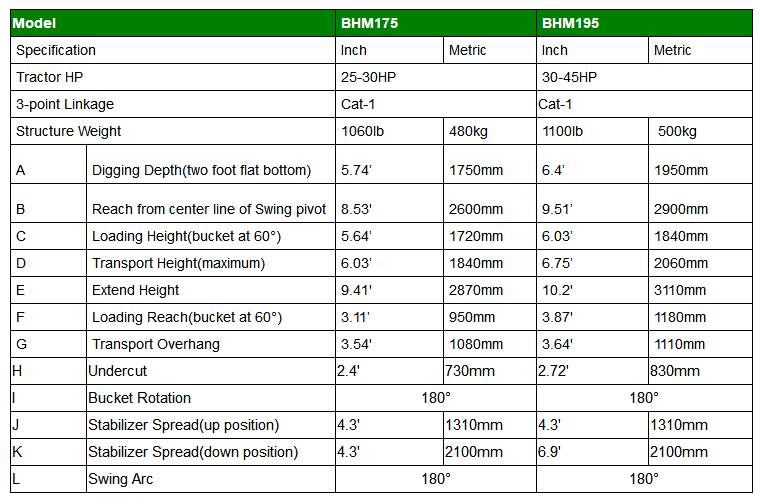

See more Specifications Below

Built for the Job.

FHM backhoe attachments are a perfect combination of size and power. Light enough to move aroun,d yet strong enough to get the tough jobs done. Some backhoe attachments boost heavier weight, but weight is not power or durability.  Additional unnecessary weight only adds stress to the frame of your tractor. FHM BHM series backhoes attachments are manufactured using heavy Q-235 (American standard ASTM A-36) structural steel plate, the strongest plate steel available. The pieces are CNC laser cut so that they fit together perfectly, and are then precision welded. This combined with our superior design and high quality components provides the best backhoe value available.

160 Degree Boom Swing

The boom on our BHM175 series FHM allows for 160 degrees of swing from one side to another. This allows you to dig into those tight spots and dump the dirt where you want.
Rust Resistant Powder Coat Finish
FHM -BHM series backhoe attachments offer a superior powder coat finish that is baked onto the steel. This finish is thicker and much more durable than paint to keep your backhoe attachment free from rust and looking good for years. .

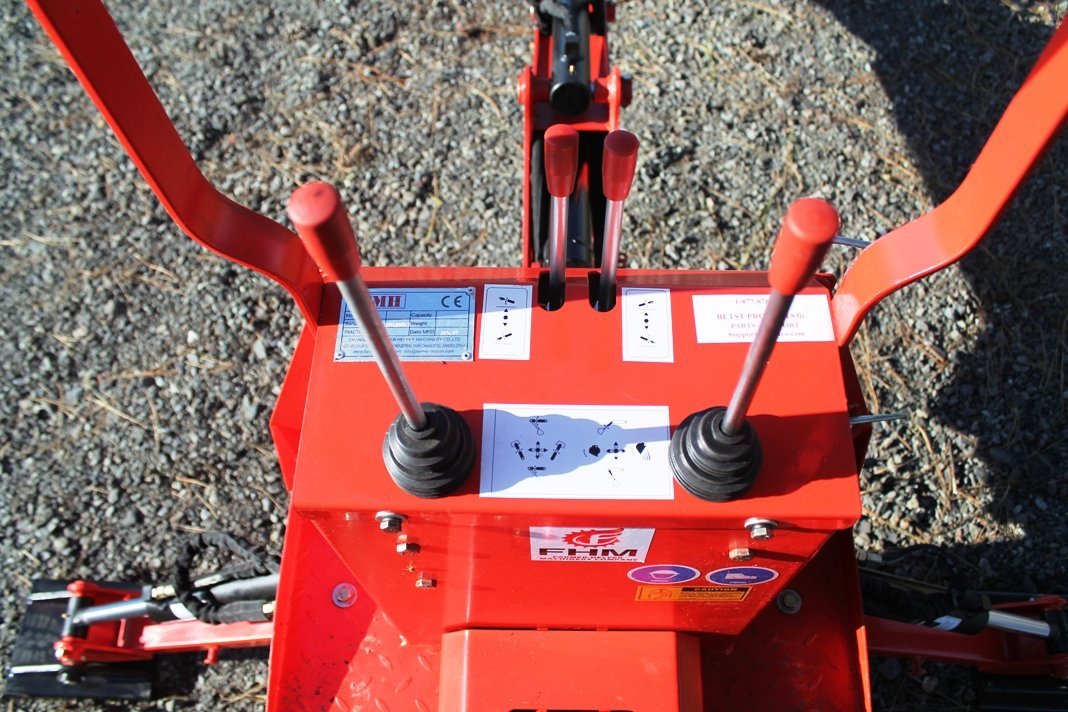

Quality Hydraulic Controls

FHM-BHM-series backhoe attachments are equipped with hydraulic control valves that are made in Italy. Italian ISO pattern hydraulic controls are known for their high precision designs and offers some of the most dependable products on the market. These are the highest quality hydraulic control valve available for a PTO backhoe attachments, and offers extremely smooth and reliable operation. The hydraulic control valves on a backhoe attachments are the heart of the backhoe. Our control valves are second to none and offer smooth dependable operation.

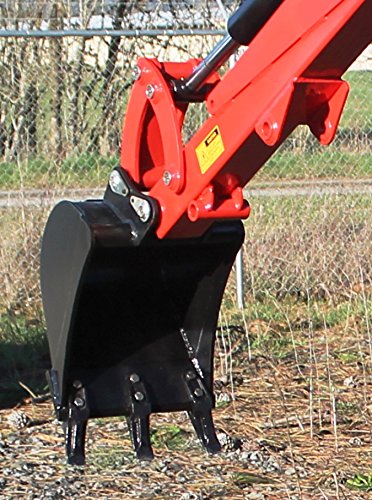

Replacable Hardened Bucket Teeth

These hardened teeth will last a long time, but are a easy to change when they need to be changed.
Fully Self-Contained Hydraulic System
All FHM backhoes attachments are equipped with a intergrated hydraulic pump and tank. No need for hydraulics from your tractor or to hang a pump off your PTO. This design is superior because it ensures the proper flow and pressure are achieved at all PTO speeds. This ensures that the hydraulic valves operate correctly. No need to try and match a backhoe to your tractors hydraulic flow and pressure. The hydraulic pump integrated into the backhoe removes pump hoses that get damage,d are in the way and the insecure and often unsafe pump loosely connected to the tractor’s PTO shaft. Connection with a PTO shaft means a secure safe connection. This design makes connecting the backhoe to the tractor easy. Just back the tractor in, attach the pins and connect the PTO shaft.

Standard Hose Fittings

FHM-BHM series backhoe attachments utilize JIC (Joint Industrial Council) hose fittings and are rated for 5000 psi. For you this means that if you ever need to replace a hydraulic hose, that your local hydraulic or parts store can make hoses while you wait. JIC fittings are widely used in hydraulic fluid transfer and typically very easy to come by. No reason to chase down an adaptor because of mismatched threads.

Spin-On Oil Filter

FHM-BHM series backhoe attachments use a spin on oil filter that can be cross referenced with Napa, Baldwin, Wix, and others. These easy to change spin on oil filter makes servicing your FHM-BHM-series backhoes attachments breeze.
Support Before and After the Sale
At FHM our service department is staffed with professional technicians that inspect each machine before it is shipped. This ensures that you get a trouble free machine from the get go. When you need technical help or parts, our courteous staff can help you get what you need from our fully stocked warehouse. We keep a full line of replacement parts, and we can ship parts within 24 hours.

Four Sizes to Choose From

FHM offers BHM series backhoe attachments in four sizes to accommodate almost any category 1 or 2 tractor. Our FHM-BHM175 with a digging depth of 5’+ to our BHM8 with a digging depth of 8’+. The purchase of BHM5 backhoe attachments includes 12” wide bucket. Optional 9″ and 16″
