Forestry Home >> Forestry >> Mechnical Auto-Feed Chipper


Chips 7″ diameter timber

Drive type: Group 5 shear pin PTO

Tractor recommendation: up 30 to 65HP

Operational RPM: 540

Rotor Dimensions: 30″ Diameter x 1/2″ Thick

Rotor weight: 205 lb

Total Weight: 850 lb


Powered by:


Tractor PTO

25-75 HP



Optional parts:with long tail

Feature-BX62S

Uses:

Perfect for those clean-ups after a storm,pruning or just processing general gardening wastes


Creating mulch for garden plants and trees for conserving water


Feature:


The BX-62S is a very simple and at the same time efficient and sturdy wood chipper.


The wood chipper comes delivered complete with P.T.O. A shear pin has also been built into one side of the P.T.O., which is a safety precaution as it serves as a predetermined breaking point in the event of blockages or overloading. This means that even larger tractors with more than 100 HP can be used with no problem. You should have an engine power output of at least 30 HP. The P.T.O. must have a speed of 540 rpm.

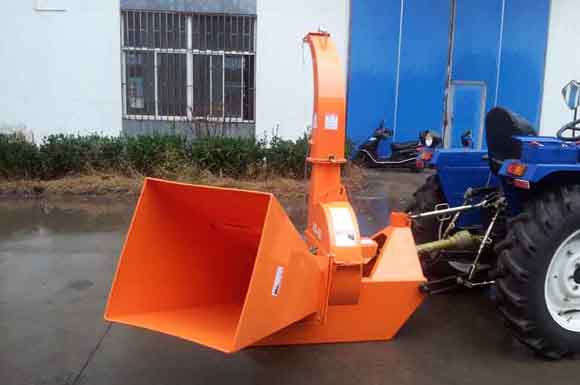

The feed hopper has an opening of 63.5 x 63.5 cm; at the bottom the opening measures 16.5 x 30.5 cm. A maximum diameter of 16.5 cm can be shredded. Many competitors list the maximum shredding diameter as the measurement of the bottom of the feed hopper, however, this value is unrealistic and can trigger the safety mechanism in the P.T.O. Softer woods with a width up to 25 cm can be shredde,d although such diameters are usually processed to firewood and not chipped.



The BX-62S has a very sturdy finish! The material strength of the sheet metal in the weight-bearing area are 10 and 5 mm. At the hopper and the non-weight-bearing parts it is 2 mm.


The hopper can be folded upward with ease for transport and is secured using a cotter pin.

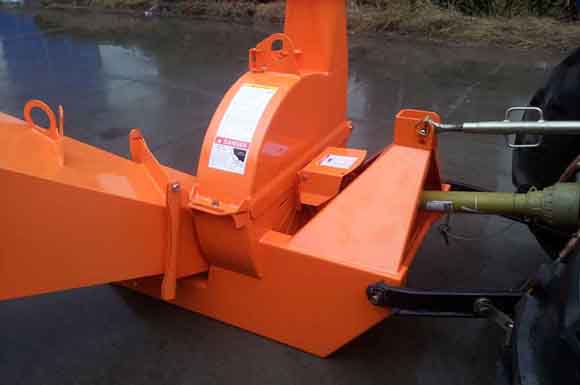

The unit has been constructed in a very maintenance-friendly way; you can open the flywheel cover completely by unscrewing just one screw, giving you access to the 4 cutting blades. These cutting blades are double-side,d so that they can be turned around if required. The flywheel has a net-weight of 50 kg and has fitted wings, which produces the incredibly powerful suction which ultimately expels the chippings out of the chute. Thanks to this powerful suction, a blockage of the shredding unit is virtually impossible.


The chute has a height of 220 cm (plus the height of the lower link) and can be rotated 360 degrees. We are also able to additionally deliver a 50 cm chute extension upon request. This enables easy direction of the chippings onto a tractor trailer or directly into Big Bags. The ejection angle can also be changed. The BX-62RS can expel the chippings up to 10 m.


The shredder has been conceived to be attached to 3 point linkage and can be used from Cat. I

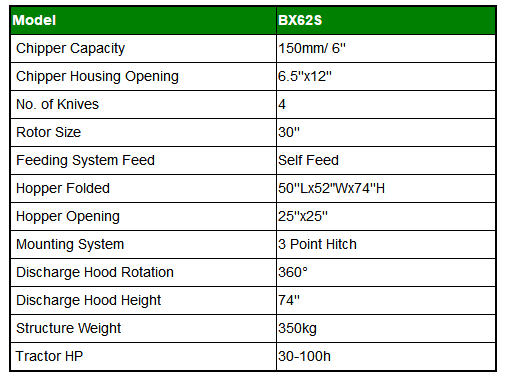

Technica data:

• For 30-100 HP tractors (22-74 kW)

• Disk-operated chipper

• Hydraulic transmission with double rollers

• Wood feeding control with rollers double rotation:clockwise and counterclockwise

• Automatic stop of power supply for safety

• Intake pipe with 360° double adjustment

• 4 knives + counterknife

• Flow regulator

• Maximum material diameter: 13 cm


Use-BX62S

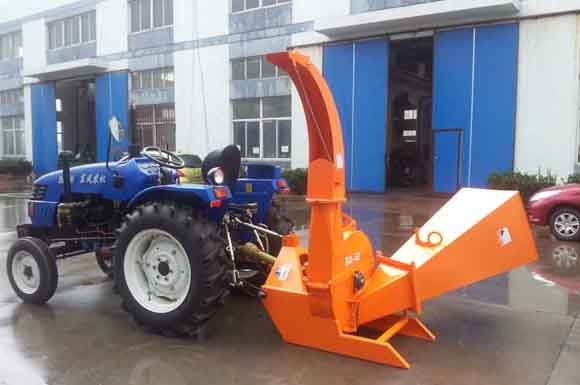

This large, pro-duty chipper integrates with the tractor’s three point hitch and PTO for easy transport and operation, eliminating the need for additional attachments or motors.
The hinged feed chute also allows you to balance weight for easy transport and reduces chippers foot print for storage.

Features-BX62S

Oversized 30” flywheel with 4 reversible blades

Integrated air vents for better operation

Twig breaker paddles to prevent clogging

Hinged feed chute for compact storage and transport

Adjustable exit chute

PTO shaft included
